Diamond Cutting Blades & Discs for Angle Grinders and Saws

54 products

Every diamond cutting blade we stock in one place: angle grinder discs from 115mm and 125mm, 230mm blades for large grinders and disc cutters, and 300-350mm blades for floor saws and table saws.

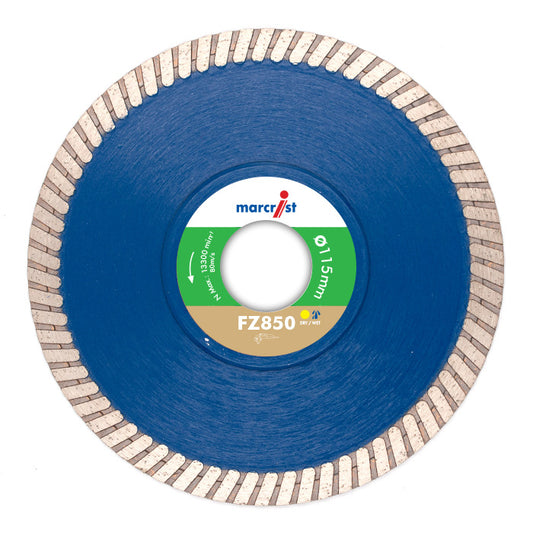

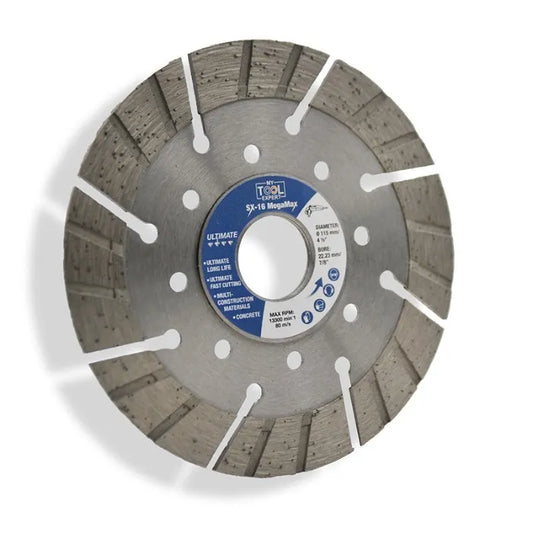

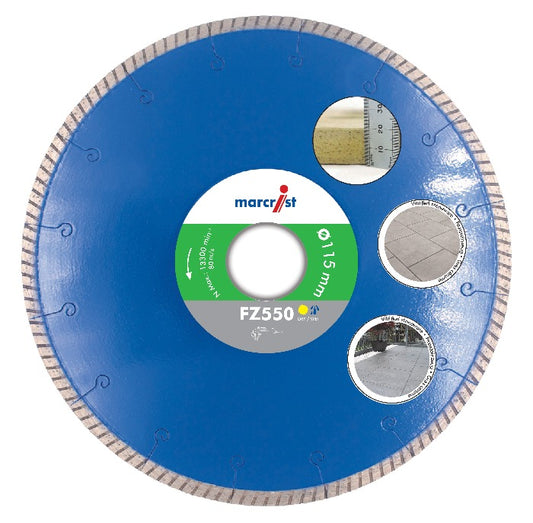

Which diamond blade do you need? For brick, block and concrete on a 115mm or 125mm angle grinder, a segmented blade: the SX-10 Superior or SX-10 PRO for everyday work, the SX-16 MegaMax or Marcrist Mi750 for reinforced concrete and engineering brick. For porcelain and ceramic tile, an ultra-thin tile blade: the Marcrist CK850T (turbo rim, 115-400mm) or CK850 AkkuMAX (115/125mm, made for cordless grinders); for 20mm outdoor porcelain paving the FZ550, and for slabs up to 30mm the FZ850 or the FZ850C for curves. For steel, cast iron and mixed materials in one blade, the MC850 Cuts-It-All. 115mm and 125mm blades use a 22.23mm bore, M14 versions screw straight onto the spindle, and 300-350mm saw blades come with 20mm, 25.4mm or 30mm bores.

Shop by material: masonry blades, tile cutting discs, metal cutting discs, saw blades and special application blades. For a 115mm or 125mm angle grinder, see segmented diamond blades, mortar raking blades and concrete grinding discs.

  • Same day despatch on orders by 12pm
  • 30 day returns
  • Buy now, pay later with Klarna

Buying guide

More about this range

Every diamond cutting blade we stock, in one place - for angle grinders, table and bridge saws, floor saws and chop saws. If you know what you are cutting, start here.

Choose by material

Choose by machine

For a 115 mm or 125 mm angle grinder, our segmented diamond blades run good, better, best across four price points. For bench work, see table and bridge saw discs. For wood, metal and composites, our circular saw blades.

Diamond blade sizes, bores and machines

Every blade lists its diameter, bore and maximum speed on the product page. This table shows which size goes with which machine and the bores you will find at each diameter.

Diameter Typical machine Bore options Examples

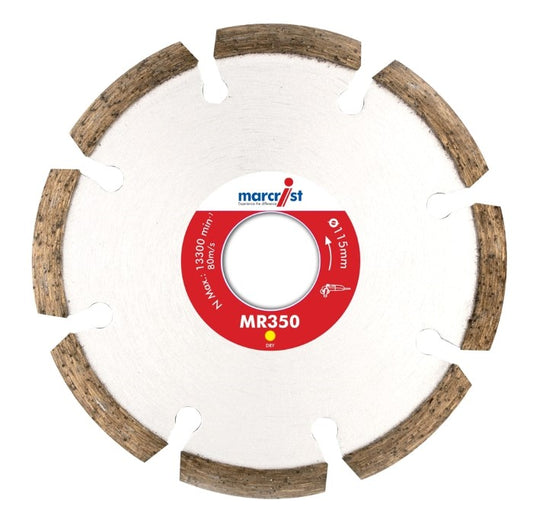

115mm 4 1/2 inch angle grinder 22.23mm, or M14 spin-on SX-10 PRO, Mi350, BF750, CK850T, FZ550, MR350
125mm 5 inch angle grinder 22.23mm, or M14 spin-on SX-10 Superior, Mi750, BF850, CK850 AkkuMAX, FZ850, CGF750
150-180mm 180mm angle grinders and wall chasers 22.23mm, 25.4mm or 30mm WS350, WS750, WS850, CK650T, CK850T, Mi850

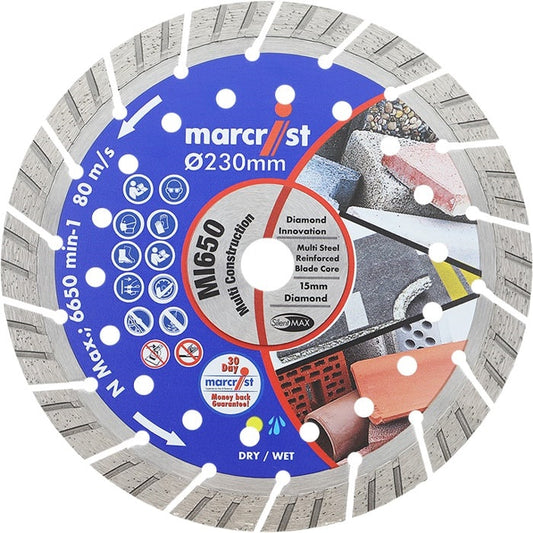

230mm 9 inch angle grinder, petrol cut-off saw, disc cutter 22.23mm (22.23/25.4mm on CK tile blades) SX-16 MegaMax, Mi650, BF850, FZ850X, RC850, VC750

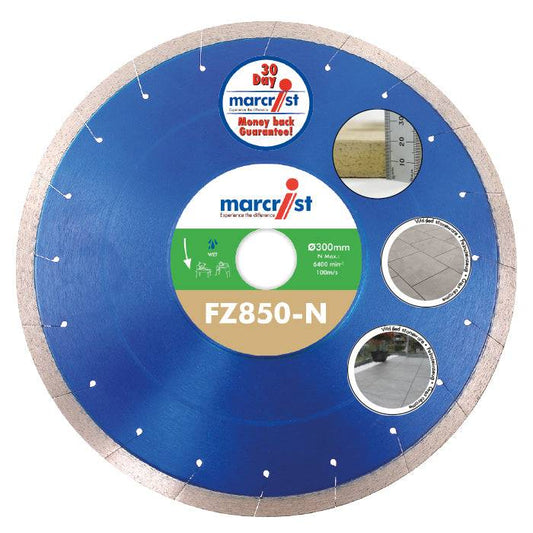

300mm Petrol cut-off saw, disc cutter, table saw 20mm, 22.23mm, 25.4mm or 30mm SX-12 MAX, Mi350, BF750, FZ850N, MA750, HM750
350mm Table and bridge saw, floor saw, petrol cut-off saw 20mm, 22.23mm, 25.4mm or 30mm Mi750, BF850T, FZ550, FZ850X, CB750, HM750
400-500mm Floor saw, table and bridge saw 20mm, 25.4mm or 30mm CB750, HM750, MA750, Mi850, CK850T

Getting the size right

115 mm and 125 mm blades share the same 22.23 mm bore, which is why so many people order the wrong one - they are not interchangeable. Read 115 mm vs 125 mm angle grinder discs before you buy.

Cutting indoors or in an occupied property? Fit a dust extraction guard - on-tool extraction is a legal duty on site, not best practice. A glazed blade that has stopped cutting can often be brought back with a resharpening stone rather than replaced.

Frequently asked questions

What size diamond blade fits my angle grinder?

A 115mm (4 1/2 inch) grinder takes a 115mm blade and a 125mm (5 inch) grinder takes a 125mm blade. Both use a 22.23mm bore, which is why the two get mixed up, but they are not interchangeable. 230mm (9 inch) grinders take 230mm blades, again on a 22.23mm bore. Check that the maximum speed marked on the blade is at least the no-load speed of your grinder.

Segmented, turbo or continuous rim: which diamond blade do I need?

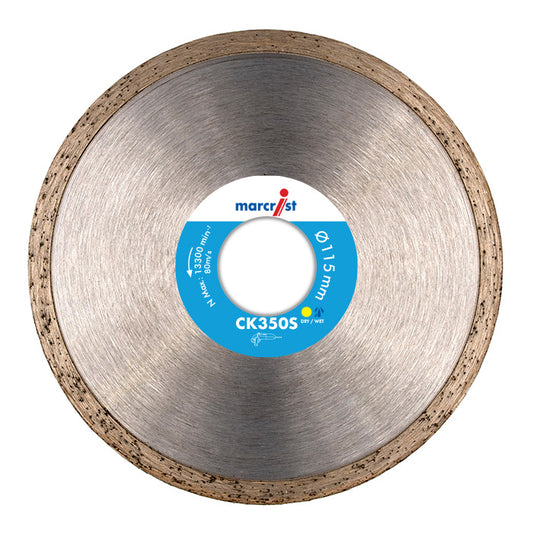

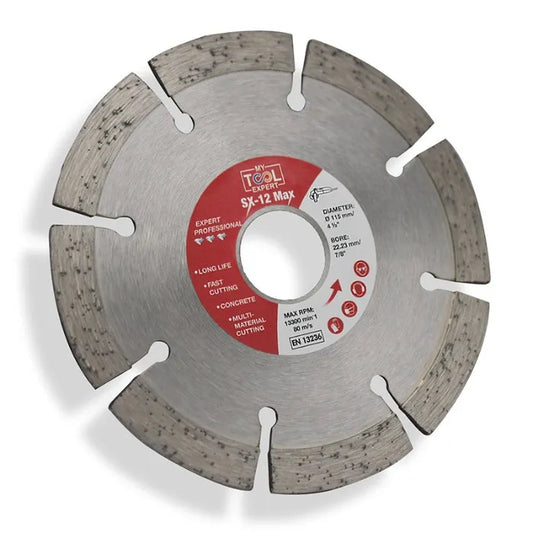

Segmented blades (SX-10, SX-12, SX-16 and the Marcrist Mi250 to Mi850) cut fastest in brick, block and concrete and clear dust well. Continuous-rim blades (CK350S, CK750S) give the cleanest, chip-free edge in ceramic, mosaic and natural stone tile. Turbo rims (BF750, BF850, CK850T) sit between the two: faster than a continuous rim and cleaner than a segmented blade.

Can I cut porcelain tiles with an angle grinder?

Yes, with a diamond tile blade rather than a masonry blade: the CK850T or CK850 AkkuMAX for wall and floor tiles, the FZ550 for 20mm outdoor porcelain and the FZ850 or FZ850C for slabs up to 30mm. Mark the cut, score a shallow first pass, support the tile fully and let the blade cut in steady passes rather than forcing it.

Will a diamond blade cut metal?

A standard masonry diamond blade is not made for metal. The vacuum-brazed MC850 Cuts-It-All cuts steel, cast iron, copper, plastics and wood with nails as well as concrete and stone, and the SX-16 MegaMax handles reinforcing steel up to 22mm inside concrete. For sheet steel and inox, use a disc from the metal cutting discs collection.

Can diamond blades be used dry?

Most of the angle grinder blades here are rated for dry or wet cutting, including the BF750, Mi350, CK850T, FZ550 and FZ850. Table saw, bridge saw and floor saw blades such as the MA750, HM750, FZ850N and BF850T are for wet cutting only. Water extends blade life and suppresses dust; when you cut dry, fit an extraction guard.

Why has my diamond blade stopped cutting?

The segments have usually glazed: the metal bond has polished over and no fresh diamond is exposed. Make a few cuts into an abrasive material, or run the blade into a diamond blade resharpening stone for three or four pulls, and it will cut again. If the segments are worn down to the steel core, replace the blade.
