Diamond Core Drill Bits

15 products

Marcrist diamond core drill bits for clean, accurate holes in brick, block, stone and reinforced concrete, from 12mm to 350mm. Dry core bits cut without water and suit hand-held drilling; wet core bits use a water feed and suit rigs and heavily reinforced concrete. Choose by material, then diameter and fitting, or shop by size: 38-42mm, 52mm, 107mm, 117mm, 127mm and 152mm.

Buying guide & FAQs
  • Same day despatch on orders by 12pm
  • 30 day returns
  • Buy now, pay later with Klarna
Sidebar

Categories

Featured Products

DDM150 Heavy Duty Diamond Drill Marcrist Diamond Drill Marcrist DDM150-1S Diamond Core Drill 110V - Hand-Held Dry Core Drilling Machine up to 150mm
Out Of Stock

Marcrist DDM150-1S Diamond Core Drill 110V - Hand-Held Dry Core Drilling Machine up to 150mm

Minimises repetitive strain and hard work The outstanding power-to-weight ratio of 1900 watts to 4.0 kg. Minimises repetitive strain and hard work with less than 85 dB(A) the quietest diamond drill on the market Ø 45 mm - 152 mm diamond drilling capacity in...
£150.00
£433.85
£150.00
Out Of Stock

Precision Drilling for Concrete, Stone & Masonry

Filter
  • 10
  • 15
  • 20
  • 25
  • 30
  • 50
  • Featured
  • Most relevant
  • Best selling
  • Alphabetically, A-Z
  • Alphabetically, Z-A
  • Price, low to high
  • Price, high to low
  • Date, old to new
  • Date, new to old
Sort

Sort by:

  • Featured
  • Most relevant
  • Best selling
  • Alphabetically, A-Z
  • Alphabetically, Z-A
  • Price, low to high
  • Price, high to low
  • Date, old to new
  • Date, new to old

Buying guide

Which core drill bit do I need?

Start with the material you are drilling and whether you will drill dry or wet, then pick the diameter.

Core bit Type Sizes Best for
Marcrist DCU350 Dry (slotted) 38-127mm Brick, block and soft to medium masonry, trade value
Marcrist DCU550 Dry 38-152mm Brick and block up to Class B engineering brick
Marcrist DCU750X Dry 22-200mm Universal: brick, block, concrete and stone
Marcrist PC850 Dry or wet 22-200mm Brick, block and concrete from a percussion drill
Marcrist CCU850X Dry or wet 22-200mm Reinforced concrete, granite and engineering brick
Marcrist CCW850X Semi-wet 38-225mm Reinforced concrete and natural stone with minimal water
Marcrist WCU350 Wet 42-250mm Blockwork, brick and concrete
Marcrist WCU550 Wet 42-225mm Natural stone and soft to medium concrete
Marcrist WCU750X Wet 42-350mm Reinforced concrete and natural stone
Marcrist WCU850X Wet 42-350mm Highly reinforced concrete, fast cobalt bond
Marcrist WF850X Wet, rig-mounted 42-350mm Extremely hard reinforced and flint concrete
Marcrist WCU850X-F Wet 12-40mm Anchor holes in heavily reinforced concrete
Marcrist PG850V Wet 48-162mm 20-30mm vitrified porcelain and outdoor ceramics
DCU550 and DCU750X sets Dry 3 or 5 cores, 38-127mm Several common sizes plus adaptors and a case, for less than buying separately

Core drill bit size guide

Match the hole to the pipe or duct, leaving a few millimetres to feed it through and seal it. For flues, fans and fire sleeves, always check the manufacturer's recommended hole size before drilling.

Job Outside diameter Core size
15mm copper pipe 15mm 22mm
22mm copper pipe 22mm 28mm or 32mm
32mm waste or condensate pipe About 36mm 42mm or 48mm
40mm waste pipe About 43mm 52mm
50mm waste pipe About 56mm 62mm or 65mm
100mm duct or extractor fan 100mm 107mm
110mm soil pipe 110mm 117mm or 127mm
125mm duct 125mm 132mm
150mm duct or 6 inch fan 150mm 162mm (152mm is a very tight fit)

Dry or wet drilling?

Dry diamond cores (DCU350, DCU550, DCU750X, PC850 and CCU850X) cut without water, which keeps the job clean indoors when paired with a dust extraction unit. The PC850 also runs from a percussion drill, and the CCU850X is built for reinforced concrete. Wet cores (WCU350, WCU550, WCU750X, WCU850X and WF850X) need a water feed and are the usual choice for heavily reinforced concrete and rig-mounted drilling. The CCW850X semi-wet core needs only a little water.

Which fitting: 1/2" BSP or 1 1/4" UNC?

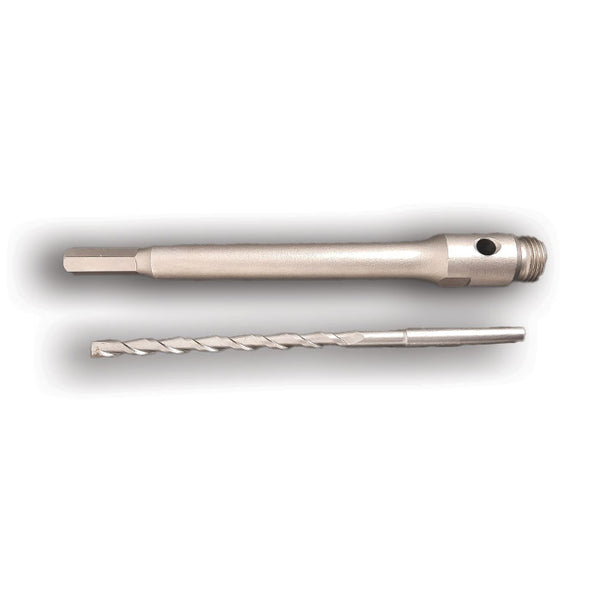

Most hand-held dry core bits use a 1/2" BSP thread and most wet core bits use 1 1/4" UNC, so check the fitting on the product page. If your drill has a different spindle, such as SDS Plus, a 3-jaw chuck or a Hilti fitting, our core drill adaptors make the connection. Complete your set-up with a diamond core drill or core drill stand, or save on several sizes with a core drill set.

Frequently asked questions

What size core drill bit do I need for a 110mm soil pipe?

117mm is a common choice, leaving about 3.5mm clearance each side of the pipe. Choose 127mm if you want more room to line up and seal it. Compare 117mm core drill bits and 127mm core drill bits.

What size core bit do I need for a 100mm extractor fan?

A 107mm core leaves about 3.5mm around a 100mm duct, enough to feed it through and seal it. See 107mm core drill bits, and check the fan manufacturer's instructions first.

Can I use a diamond core drill bit in an SDS drill?

Yes, with an SDS Plus adaptor and the hammer action switched off, so the drill runs on rotation only. The PC850 is designed to run on percussion drills with percussion on, but not in SDS hammer mode.

Should I drill wet or dry?

Drill dry indoors in brick, block and most concrete, with dust extraction. Drill wet in heavily reinforced concrete and very hard materials, where the water cools the diamond segments and flushes out the slurry.

How do I stop the core bit skidding when I start the hole?

Fit a pilot drill bit through the centre of the core so it locates the hole and stops the bit skidding on the surface. Many Marcrist cores also have rooftop segments that make starting easier.
