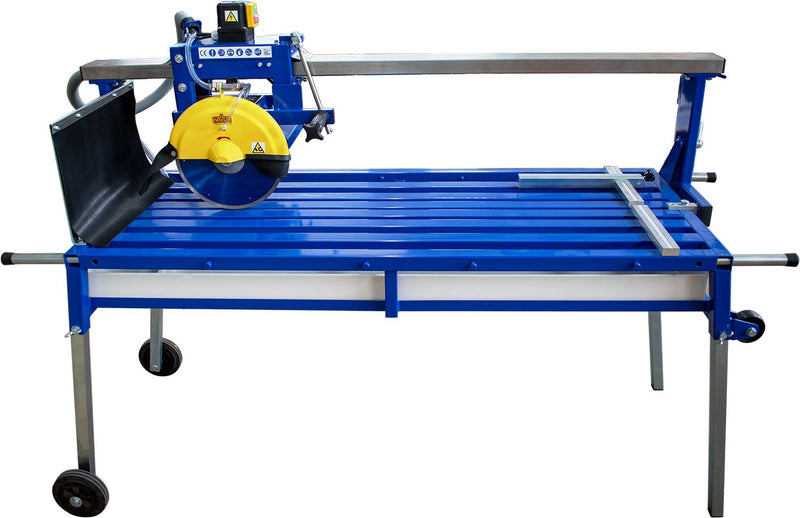

Zuber PS1050NJ Bridge Saw - 300mm Wet Cutting Saw for Porcelain Paving, Tile & Stone

The Zuber PS1050NJ is a professional wet-cutting bridge saw for landscapers, tilers and stone fitters who need long, straight, chip-free cuts in porcelain paving, large-format tile and natural stone. A 2000W 230V motor drives a 300mm diamond blade along a stainless steel guide rail, giving cuts up to 1250mm long and 110mm deep.

The cutting head tilts from 0 to 45 degrees for mitres, plunges for cut-outs, and rises and falls quickly for different material thicknesses. The bridge is built for rigidity, and the 10-way bearing carriage keeps the blade running smoothly and true along the full length of the cut.

Features

• 1250mm cut length - cuts large-format tiles and paving slabs in one pass.
• 110mm cutting depth - for 20mm and 30mm porcelain paving, thick natural stone and concrete slabs.
• Head tilt 0-45 degrees - for mitred edges on steps, copings and outside corners.
• Plunge cutting - start a cut inside the slab for cut-outs and notches.
• Quick rise and fall - set the cutting height fast for different material thicknesses.
• Stainless steel guide rail and 10-way bearing carriage - for a smooth, straight, accurate cut.
• Water management system - water is fed to both sides of the blade to keep it cool and hold down dust, and the removable water tray has a separate pump chamber so sludge settles away from the pump.
• Guard noise reduction and easy blade change.
• Robust, site-ready design - on wheels so it can be moved around site, and hand-assembled and inspected by Zuber, part of Marcrist.

In Marcrist's own test, the PS1050NJ cut a strip of porcelain just 1.09mm thin along a 1 metre length.

PS1050NJ technical data

Blades for the PS1050NJ

The saw takes a 300mm blade with a 25.4mm bore. Marcrist recommends four of its diamond blades for the PS1050NJ: FZ850N for outdoor porcelain tiles, CK850 for outdoor porcelain and tile, Mi850 for natural stone and granite, and BF850 for granite, concrete and hard materials. In this size we stock:

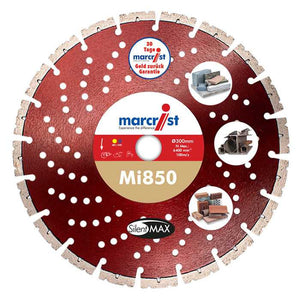

• Natural stone and granite - Marcrist Mi850, 300mm with a 25.4mm bore.
• Porcelain paving and tile - Marcrist CK850T, 300mm with a 25.4/30mm bore.

See all table saw cutting discs and tile cutting blades. Always match the blade to the material and check its bore before fitting.

Optional SZA40 support table

The SZA40 support table adds a 500 x 430mm work surface to either side of the saw and adjusts to 4 positions, to support long or heavy slabs. Contact us for prices and availability.
