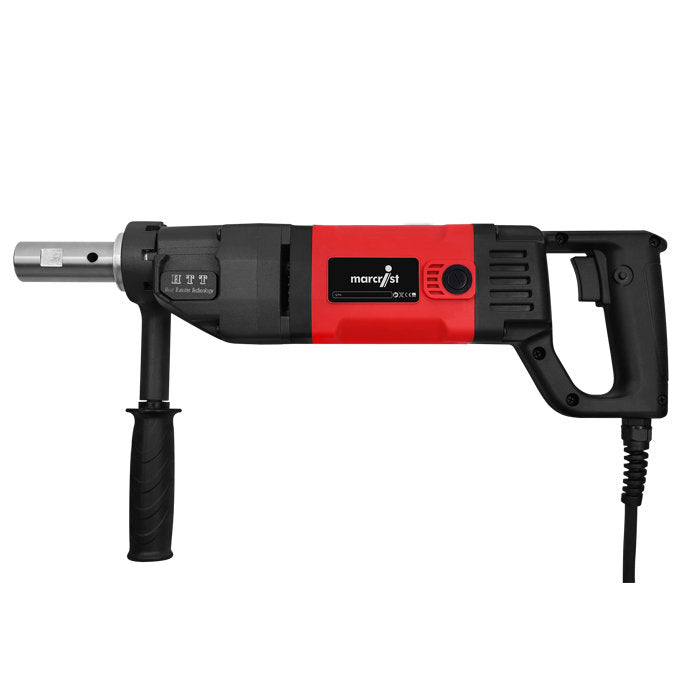

Marcrist DDM150-1S Diamond Core Drill 110V - Hand-Held Dry Core Drilling Machine up to 150mm

Minimises repetitive strain and hard work

The outstanding power-to-weight ratio of 1900 watts to 4.0 kg. Minimises repetitive strain and hard work with less than 85 dB(A) the quietest diamond drill on the market Ø 45 mm - 152 mm diamond drilling capacity in masonry. Exceptionally compact and well-balanced.

This drilling machine is designed for dry-core drilling only. It is used as a handheld manually operated machine only. The diamond core drilling machine DDM150 is intended only for professional use and may only be operated by instructed persons.

In conjunction with the corresponding diamond core bits, the machine is designed for drilling concrete, stone, bricks, sand-lime brick, aerated concrete and masonry, and asphalt.

Features & Benefits

• 1700w / 110v
• Limp safety mode
• Heavy-duty mechanical safety clutch
• Overload protection
• Soft start
• Exceptional power-to-weight ratio

CE Standard: CE

Content
- Diamond Core Drilling Machine
- Operation Manual
- Drift Key
- ½“ BSP-M to ½“ BSP-M adaptor
- Spanner
- Professional Handle
- Transport Case

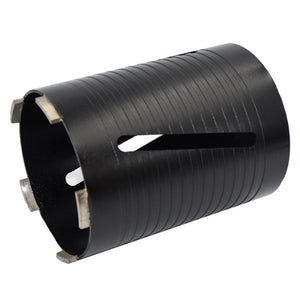

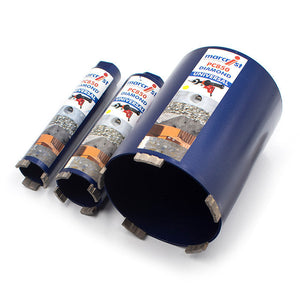

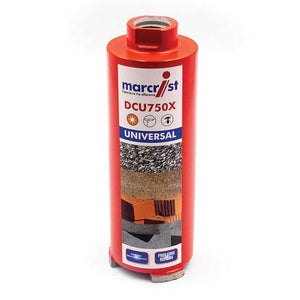

We wrote about why this machine changed dry core drilling: the powerful and quiet diamond drill. Fit it with diamond core drill bits, or compare the rest of our diamond core drills.

DDM150 spare parts

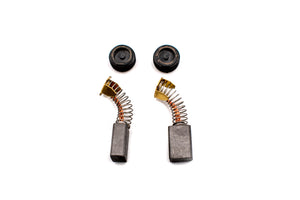

A DDM150 that has lost power or will not start usually needs a new carbon brush set - the cheapest and most common repair. Next most replaced are the armature, the switch assembly and the electronic block with speed selector.

For a full rebuild: the motor housing unit, the gearbox housing with drive spindle, the safety clutch assembly, the intermediate housing and the armature air seal.

Handles and leads: the castellated side handle, the spade handle assembly, the cable gland assembly and the 110V/16A power lead. See all DDM150 spare parts on one page, or browse every core drill spare part.
